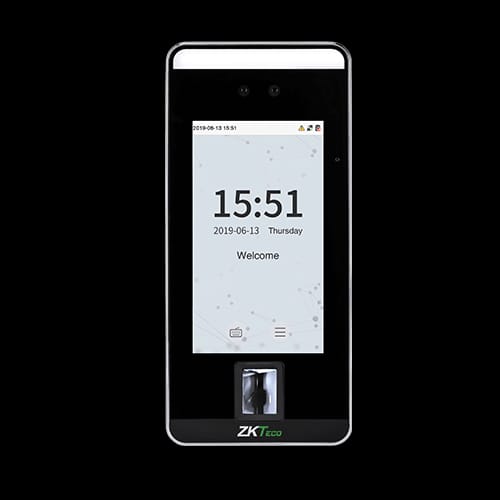

The SpeedFace-V5L Series employs intelligent engineering facial recognition algorithms and cutting-edge computer vision technology. It offers support for fingerprint, facial, and palm verification with large capacity and speedy recognition. Moreover, the SpeedFace-V5L is equipped with QR code support via Mobile APP, further enhancing the device's security performance in all aspects.

• ModelSpeedFace-V5L; SpeedFace-V5L[TD]; SpeedFace-V5L[TI]Display5"@ ISP Color LCD Screen (720*1280)CameraWDR Low Light Camera @ 2MP
• Operation SystemLinux
• HardwareCPU: 1.GHz Dual Core
• RAM: 1GB; ROM: 8GB
• Supplement Light: Yes
• Virtual Keypad: 12 Keys
• Fingerprint Sensor: Z-IDAuthentication MethodSpeedFace-V5L: Face / Fingerprint / Palm (Customized) / Card / Password
• (Virtual Keypad)
• SpeedFace-V5L[TD]: Face / Fingerprint / Palm (Customized) / Card / Password
• (Virtual Keypad)
• SpeedFace-V5L[TI]: Face / Fingerprint / Palm (Customized) / Card / Password (Virtual Keypad)Fingerprint Template Capacity6,000 (1:N) (Standard) / 10,000 (1:N) (Optional) / 6,000 (1:1)Face Template Capacity6,000 (1:N) (Standard) / 10,000 (1:N) (Optional) / 6,000 (1:1)
• Palm Template Capacity【Customized】 3,000 (1:N) (Standard) / 3,000 (1:1)Card Capacity10,000 (1:N) (Optional) / 10,000 (1:1)Transaction Capacity200,000 (1:N) (Optional for Capacity Expansion)Biometric Verification Speedless than 0.3 sec (Fingerprint)
• less than 1 sec (Facial Recognition)
• less than 0.35 Sec (Palm)Touchless Biometric Recognition Distance1cm to 100cm (Facial Recognition)
• Up to 50cm(Palm)False Acceptance Rate (FAR) %FAR ≤ 0.01% ( Visible Light Facial Recognition)
• FAR ≤ 0.0001% ( Fingerprint ; ZKFingerprint V10.0)
• FAR ≤ 0.05% (ZKPalm V12.0)
• False Rejection Rate (FRR) %FRR ≤ 0.02% ( Visible Light Facial Recognition)
• FRR ≤ 0.01% ( Fingerprint : ZKFingerprint V10.0)
• FRR ≤ 1.8% ( ZKPalm V12.0)Biometric AlgorithmZKFace 3.9
• ArmaturaPalm (Customized)
• ZKFingerprint V10.0Card TypeID Card@125 kHz (Optional)
• IC Card@13.56 MHz (Optional)
• CEPAS(Optional)QR CodeDynamic or Static QR codes on the ZKBio CVSecurity mobile application. QR code, PDF417, Data Matrix, MicroPDF417 and Aztec scanning in third-party development projects (Support QR500 / 600 Series).
• CommunicationTCP/IP*1
• Wiegand (Input & Output)*1
• RS485: ZKTeco RS485*1*
• Aux Inputs *1, Aux Outputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm*1, Doorbell*1Standard FunctionsADMS, T9 Input, DST, 14-digit User ID, Access Levels, Groups, Holidays, Anti-passback,
• Record Query, Tamper Switch Alarm, Multiple Verification MethodsPower SupplyDC 12V 3AOperating Temperature-10°C ~ 45°C (14°F ~ 113°F)Operating Humidity10% to 90% RH (Non-condensing)Dimensions91.93mm * 202.93mm * 21.5mm (L*W*H)Gross Weight1.3 KgNet Weight0.6 Kg
• Supported SoftwareSoftware: ZKBio CVAccess
• Mobile App: ZKBio Zlink / ZSmart
• Cloud Service: ZKBio ZlinkInstallationWall-mount (Compatible with Asian Gang-box / Single Gang-Box)CertificationsISO14001, ISO9001, CE, FCC
