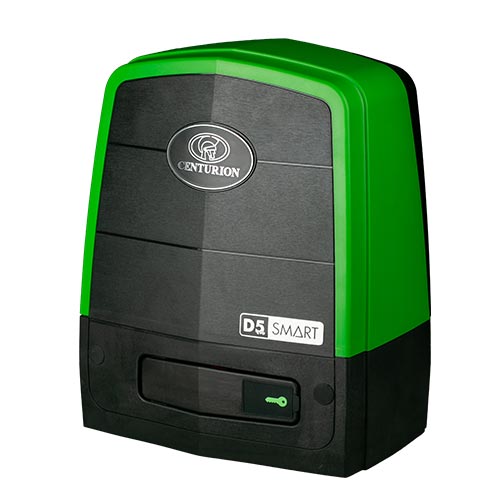

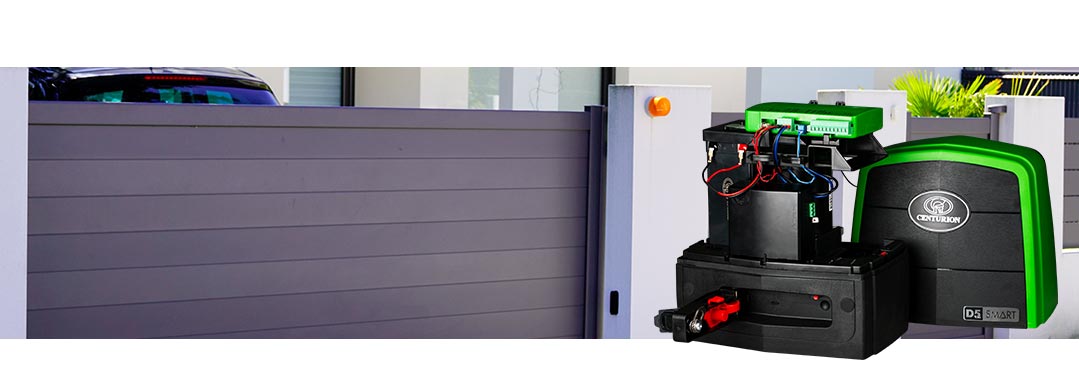

More than just an upgrade, it’s an evolution. The D5-Evo SMART retains the legendary strength and dependability of its predecessor, now enhanced with intelligent features that put you in complete control. Enjoy effortless smartphone control, advanced diagnostics for ultimate peace of mind, and dependable battery-driven technology that keeps you protected even during power outages.

• Seamless Control: Manage your gate with maximum convenience, control and flexibility with the user-friendly smartphone app
• Intelligent Insights: Advanced notifications, alarms, monitoring and reporting keep you informed and in control
• Uninterrupted Security and Convenience: Dependable battery-driven technology ensures seamless operation even during power outages
• Effortless Setup: Wireless configuration and smartphone control make installation a breeze
• Enhanced Security: The improved theft-deterrent cage and advanced position control system offer unparalleled peace of mind
• Ultimate Versatility: Individually-configurable inputs and outputs allow for harmonious integration with your SMART ecosystem
• Input voltage (1)110V - 240V AC 50/60Hz (1)
• Current consumption (mains)320mA peak
• Dx12V Battery charger current output1.8A @ 14.3V +/- 5% (28W)
• Maximum number of operations per day150 (3,6)
• Duty cycle - Mains present (2,3)50%
• Motor power supplyBattery-driven (Standard Capacity - 1x12V)
• Current consumption (motor at rated load)15A
• Input / Output sink currents (Max. accessory current draw)I/O 4 and I/O 5100mA (12V)
• Fuse ProtectionType | Rating
• Main Control CardServiceable | 35A
• Aux. SupplyResetable Fuse | 12V 600mA (10sec Pulse)
• Charger (Mains Supply)Non-serviceable | 3A slow-blow
• Motor push force - starting30kgf
• Motor push force - rated17kgf
• Gate mass - maximum500kg
• Gate length - maximum20m
• Gate speed (varies with load) (4)Maximum: Up to 24m/min Rated: Up to 19m/min
• Manual OverrideLockable with key release
• Operations whilst in Battery backup mode with 7.2Ah BatteryOperating Modes | Up to 24m/min 7kgf | Up to 18m/min 17kgfHalf day (5,6,8)90 | 44Full day (5,6,8)70 | 35
• Collision SensingElectronic
• Onboard receiver typeCode-hopping multichannel receiver with selective add and delete
• Receiver code storage capacity1500 Remotes (7)
• Receiver frequency433.92MHz
• Degree of protectionIP55
• Mass of unit packed (with standard kit, but excl. Rack and Battery)7.1kg
• Packaging dimensions (with standard kit, but excl. Rack and Battery)325mm wide x 245mm deep x 395mm high
